    Single-ply roofing membranes are flexible, factory-made sheets of synthetic material installed in a single layer to waterproof low-slope and flat roofs.[1] The three main types are TPO and PVC (thermoplastics, with heat-welded seams) and EPDM (a synthetic rubber). They are widely used in commercial roofing as a lightweight alternative to multi-layer built-up systems, and typically last 20–30 years with proper care.[2]

    They are especially valued for their quick installation, reflectivity, and compatibility with green building practices such as Cool Roofs and Energy Efficiency upgrades. In U.S. residential construction, the International Residential Code requires single-ply membrane roofs to have a design slope of at least 1/4 inch per foot (2%) for drainage.[3]

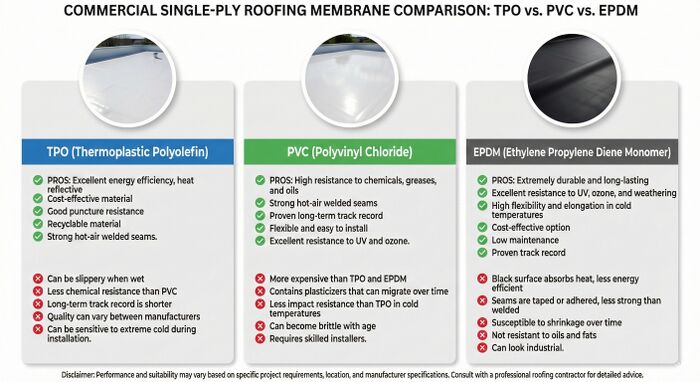

    TPO vs EPDM vs PVC roofing membrane comparison chart showing pros and cons of each single-ply roofing system
    Comparison of TPO, EPDM, and PVC single-ply roofing membranes: advantages, disadvantages, and best applications for commercial flat roofs

    Choosing Between TPO, PVC and EPDM

    Specify the complete roof assembly, not just a membrane acronym. Seams, attachment, insulation, cover board, penetrations, edge securement and the proposed warranty all need to work together. Manufacturer documents distinguish thermoplastic heat-welded seams from EPDM's taped or adhesive seams.[4]

    System Seam approach Decision to resolve with the designer/contractor
    TPO Heat-welded thermoplastic Compare the specified product, thickness, attachment and compatible detail accessories, including the conditions required for its warranty.[4]
    PVC / PVC-KEE Heat-welded thermoplastic Where exhaust contains grease or chemicals, identify the actual exposure and obtain product-specific written compatibility advice.[5]
    EPDM Taped or adhesive seams for this thermoset rubber Confirm compatible seam/repair products and the proposed attachment, rather than assuming a heat-welding procedure applies.[4]

    Resistance does not guarantee warranty coverage. GAF cautions that chemical, oil and grease damage is typically excluded from manufacturer guarantees. Do not select a restaurant roof by a generic claim that PVC is grease-proof; document the exposure, detailing and exact written coverage.[5] Other suppliers' terms must be checked separately.

    What to Compare in Two Membrane Proposals

    Ask each bidder to state the deck condition, wet-insulation assessment, drainage corrections, membrane product/thickness, cover board, attachment and perimeter/corner details. Have the designer establish the project's wind and fire requirements; SPRI publishes relevant assembly-design standards.[6] Compare workmanship responsibility and the actual warranty exclusions, not just the advertised term.

    Details from Real Roofing Projects

    • Single-ply commercial roof photographed in Sacramento, California
      Single-ply roof field example — Sacramento, CA. Follow the membrane into its perimeter details; a broad field surface is only part of the waterproofing system.
    • Close-up field photograph of a single-ply roof in Canoga Park, California
      Single-ply field detail — Canoga Park, CA. A photograph does not identify polymer chemistry, concealed layers or warranty eligibility.

    These photographs come from the original field-photo collection. Open a file for attribution and licensing. They illustrate visible conditions, not a documented installation inspection or evidence of a particular manufacturer's product.

    Key Characteristics

    • Installed in a single layer of factory-manufactured sheet, made under controlled quality conditions[1]
    • Available in white, black, or gray for energy performance customization; the reflectance of many roofing products is independently rated by the Cool Roof Rating Council[7]
    • Applied using mechanical fasteners, adhesives, induction welding, or ballast[2]
    • Weathering and chemical resistance depend on the particular product and exposure; confirm the manufacturer's limitations.[5]
    • Ideal for large-scale roof areas requiring minimal weight

    Common Types of Single-Ply Membranes

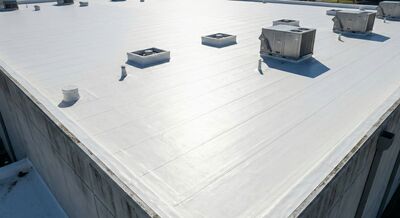

    TPO (Thermoplastic Polyolefin)

    TPO thermoplastic polyolefin roofing membrane pros and cons diagram
    TPO roofing membrane: heat-weldable, energy-efficient, and UV-resistant for commercial flat roofs
    • A blend of rubber and plastic (ethylene-propylene and polypropylene) that stays flexible without added plasticizers[2]
    • Highly reflective and heat-weldable
    • Popular for energy-efficient commercial roofs
    • Made to ASTM D6878[2]

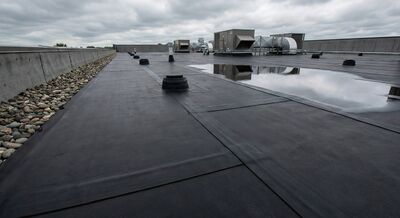

    EPDM (Ethylene Propylene Diene Monomer)

    EPDM synthetic rubber roofing membrane pros and cons diagram
    EPDM rubber roofing membrane: flexible, cold-weather resistant, and durable for warehouses and distribution centers
    • Black synthetic rubber membrane (white versions are also made)
    • Excellent flexibility and cold-weather performance, with high resistance to ozone, weathering, UV and hail[8]
    • Used on low-slope commercial roofs for more than 40 years[8]
    • Commonly used on large warehouses and distribution centers

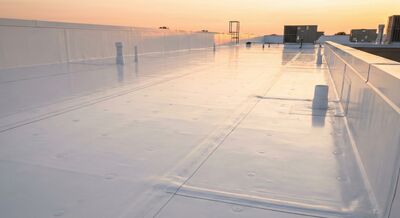

    PVC (Polyvinyl Chloride)

    PVC polyvinyl chloride roofing membrane pros and cons diagram
    PVC roofing membrane: chemical-resistant, puncture-resistant, and ideal for restaurants and industrial buildings
    • Strong resistance to grease, oils and some industrial pollutants, making it a common choice over restaurants and industrial buildings[2]
    • Reinforced versions resist punctures and high foot traffic
    • Typically white and highly reflective
    • Made to ASTM D4434; some versions add KEE (ketone ethylene ester) for flexibility and durability[2]

    Attachment Methods

    • Fully Adhered: Bonded directly to the substrate using adhesives
    • Mechanically Fastened: Secured with fasteners and plates, usually at the seams
    • Ballasted: Membrane held in place by gravel or concrete pavers (less common today)
    • Induction-Welded: Membrane bonded to the substrate by induction welding[2]
    • Seam method is separate from roof attachment: TPO/PVC seams may be heat-welded while the assembly is adhered or mechanically attached; EPDM seams use compatible tape or adhesive.[4]

    The attachment method, together with the deck and insulation, determines the roof's wind-uplift resistance; SPRI publishes ANSI standards for wind design, edge systems and ballasted systems.[6]

    Advantages

    • Lightweight: Reduces structural load
    • Fast Installation: Minimizes labor time
    • Low Maintenance: Wide sheets mean fewer seams, and upkeep is simple
    • Energy Efficient: White membranes reflect heat and reduce cooling loads; the EPA lists light-colored single-ply membranes among low-slope cool roof products[9]
    • Long Service Life: Typically 20–30 years with proper care, depending on installation method, membrane thickness and workmanship[2]

    Use Cases

    • Large commercial roofs such as offices, retail centers, and warehouses
    • Energy-conscious buildings seeking to reduce HVAC costs
    • Structures requiring rapid installation and waterproofing performance

    Environmental Considerations

    • Thermoplastic membranes can be recycled; the PVC roofing industry, for example, runs pre- and post-consumer recycling programs[10]
    • TPO contains no Red List materials, which can help owners meet environmental goals[2]
    • White and light-colored options support Cool Roofs initiatives; cool roofs cut air-conditioning energy use and can reduce peak cooling demand[9]
    • Reflective roofing can contribute to heat-island credits under green-building programs such as LEED Certification
    • Compatible with Green Roofs and solar installations

    Comparison with Other Roofing Systems

    vs Modified Bitumen Roofing

    • Single-ply is faster to install and lighter
    • Modified bitumen offers multi-layer redundancy and, in many systems, higher puncture and impact resistance

    vs Built-Up Roofing

    • Single-ply is factory-manufactured for quality control[1]
    • BUR is built on-site and can be more complex and labor-intensive

    Maintenance and Longevity

    • Inspect seams, flashings, penetrations and surface punctures regularly
    • Keep the roof clear of debris and keep drains open
    • Clean reflective surfaces to maintain performance
    • Recoat or patch damaged areas as needed
    • Have the roof inspected at least twice a year (usually spring and fall), after major storms, and after heavy foot traffic[2]

    Frequently Asked Questions

    What is a single-ply roofing membrane?

    It is a single layer of flexible, factory-made synthetic sheet used to waterproof a flat or low-slope roof.[1] The common types are TPO, PVC and EPDM.

    How long does a single-ply roof last?

    With proper installation and maintenance, TPO and PVC roofs typically last 20 to 30 years; thicker, well-adhered membranes installed with good workmanship tend to last longer.[2] EPDM has a long track record on commercial roofs, with more than 40 years of field use.[8]

    What is the difference between TPO, PVC and EPDM?

    TPO and PVC are white or light-colored thermoplastics whose seams are heat-welded; PVC is preferred where grease or chemicals reach the roof. EPDM is a synthetic rubber, usually black, valued for flexibility in cold weather.[2][8] See TPO Roofing, PVC Roofing and EPDM Roofing.

    How often should a single-ply roof be inspected?

    At least twice a year, usually in spring and fall, plus after major storms or heavy foot traffic on the roof.[2]

    Can single-ply membranes be used on a nearly flat roof?

    Yes, but they still need a slight slope for drainage. The IRC requires at least 1/4 inch per foot (2%) for single-ply membrane roofs, often built with tapered insulation.[3][2]

    References

    1. ↑ 1.0 1.1 1.2 1.3 What is single-ply roofing? / About SPRI — SPRI (Single Ply Roofing Industry). Retrieved 2026-09-24.
    2. ↑ 2.00 2.01 2.02 2.03 2.04 2.05 2.06 2.07 2.08 2.09 2.10 2.11 2.12 2.13 A Beginner's Guide to Single-Ply Roofing Membranes — Roofing Contractor. Retrieved 2026-09-24.
    3. ↑ 3.0 3.1 IRC 2021 Chapter 9: Roof Assemblies (R905.12–R905.13 single-ply membranes) — International Code Council via UpCodes. Retrieved 2026-09-24.
    4. ↑ 4.0 4.1 4.2 4.3 GAF: Single-Ply Roof Membrane Types and Comparison. Checked 15 October 2026.
    5. ↑ 5.0 5.1 5.2 GAF: Chemical Resistance of Single-Ply Membranes. Checked 15 October 2026.
    6. ↑ 6.0 6.1 ANSI/SPRI Standards — SPRI. Retrieved 2026-09-24.
    7. ↑ Cool Roof Rating Council — CRRC. Retrieved 2026-09-24.
    8. ↑ 8.0 8.1 8.2 8.3 Why EPDM — EPDM Roofing Association. Retrieved 2026-09-24.
    9. ↑ 9.0 9.1 Using Cool Roofs to Reduce Heat Islands — U.S. Environmental Protection Agency. Retrieved 2026-09-24.
    10. ↑ Vinyl Roofing Division — Chemical Fabrics and Film Association. Retrieved 2026-09-24.
