Attic Ventilation and Insulation Guide
Attic Ventilation and Insulation Guide
Poor attic ventilation is the number one reason manufacturers deny roof warranty claims. It is also a leading cause of ice dams, premature shingle failure, mold growth, and excessive energy costs. Ventilation and insulation work as a team -- ventilation removes heat and moisture from the attic, while insulation keeps conditioned air in your living space. When either one fails, the other cannot compensate.
Why Ventilation Matters
Summer
Without adequate ventilation, attic temperatures can exceed 150F (65C) on a sunny day. This superheated air:
- Bakes shingles from underneath, accelerating aging and granule loss -- shingles rated for 25 years may fail in 15
- Radiates heat down through the ceiling into living spaces, increasing cooling costs by 10-30%
- Degrades underlayment and decking adhesives over time
- Can warp or delaminate OSB and plywood decking
Winter
In cold weather, warm moist air from the living space rises into the attic through gaps, fixtures, and inadequate insulation. Without ventilation to carry this moisture out:
- Moisture condenses on the cold underside of the roof deck, causing wood rot and mold

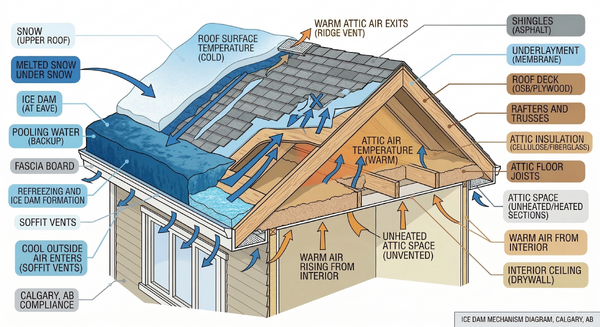

- Warm attic air melts snow on the roof surface unevenly, creating ice dams at the colder eave edges
- Frost forms on roof sheathing, then melts during warm spells and drips like an interior rainstorm
- Insulation becomes damp and loses effectiveness, compounding the problem
The Ventilation Equation
The standard rule for attic ventilation is:
1 square foot of net free ventilation area (NFA) for every 150 square feet of attic floor space.
This is the 1:150 ratio. If your attic is 1,500 square feet, you need at least 10 square feet of total ventilation area.
The ratio can be reduced to 1:300 (half as much ventilation needed) when both of these conditions are met:
- Ventilation is balanced -- roughly equal intake and exhaust area
- A vapor barrier is installed on the warm side (living space side) of the attic insulation
Critical rule: Intake must equal or exceed exhaust. If you have more exhaust than intake, the exhaust vents will pull air from wherever they can -- including through gaps around light fixtures, plumbing stacks, and other ceiling penetrations. This pulls conditioned air out of the living space and can draw rain or snow into the attic through the exhaust vents themselves.
Types of Vents
Intake Vents
Intake vents allow cool outside air to enter the attic at the lowest possible point.
Soffit vents are the most common and effective intake ventilation. They are installed in the soffit (the underside of the eave overhang) and come in several forms:
- Continuous soffit strip vents -- long perforated strips running the full length of the eave (best coverage)
- Individual soffit vents -- rectangular or round vents placed every few feet
- Perforated soffit panels -- entire soffit panels with built-in ventilation holes
Drip edge vents provide intake ventilation at the eave when soffits are too narrow for traditional vents or when soffit vents are impractical. They integrate into the drip edge flashing.
Exhaust Vents
Exhaust vents allow hot air and moisture to exit the attic at or near the highest point.
Ridge vents run along the entire length of the roof peak and are the preferred exhaust method for most roof designs. They provide continuous, uniform exhaust along the entire ridge and are covered by ridge cap shingles, making them nearly invisible from the ground.
Turbine vents (whirlybirds) use wind power to spin and actively draw air out of the attic. They are more effective than static vents in windy areas but can admit rain in heavy storms if the bearing fails and the turbine stops spinning.
Static box vents (turtle vents) are individual square or round vents installed near the ridge. They rely on passive convection. Multiple units are needed for adequate coverage -- typically one per 150-300 square feet of attic space.
Gable vents are louvered openings in the gable wall. They provide cross-ventilation in gable roofs but are not recommended as the primary ventilation method, especially when combined with ridge vents. Ridge vents combined with gable vents can short-circuit -- air enters the gable vent and exits the nearby ridge vent without ventilating the full attic space.
Powered attic ventilators (PAVs) use electric or solar-powered fans to force air out. While effective at moving air, they can create negative pressure that pulls conditioned air from the living space if intake vents are insufficient. Most roofing experts recommend passive ventilation systems over powered ventilators.
Common Ventilation Mistakes

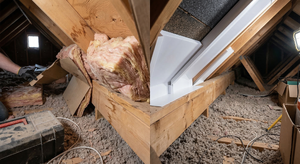

- Blocking soffit vents with insulation -- The most frequent mistake. When insulation is added or blown into the attic, it can cover or block soffit vents entirely. The solution is ventilation baffles (also called rafter baffles or insulation baffles) -- rigid or foam channels stapled between rafters at the eave to maintain an airflow path from the soffit vent to the attic space above the insulation.
- Mixing exhaust vent types -- Combining ridge vents with gable vents, or ridge vents with powered ventilators, can short-circuit the ventilation system. Air takes the path of least resistance. Choose one type of exhaust vent and use it consistently.
- Insufficient intake -- Having large exhaust vents with small intake openings is worse than having no vents at all. Exhaust without adequate intake creates negative pressure that pulls air through every crack and gap, including from inside the living space.
- Venting into the attic -- Kitchen exhaust fans, bathroom fans, and dryer vents must exhaust to the exterior, not into the attic. Venting moisture-laden air into the attic is one of the fastest paths to mold, rot, and structural damage.
- Adding ventilation without addressing air sealing -- Ventilation removes moisture that enters the attic, but reducing moisture entry is equally important. Seal gaps around light fixtures, plumbing penetrations, attic hatches, and ductwork before adding ventilation.
Insulation
R-Values by Climate Zone
R-value measures insulation's resistance to heat flow. Higher numbers mean better insulation. The U.S. Department of Energy recommends these minimums for attic floors:
| Climate Zone | Region Examples | Recommended Attic R-Value |
|---|---|---|
| Zone 1 | Southern Florida, Hawaii, Southern Texas | R-30 |
| Zone 2 | Gulf Coast, Southern California | R-30 to R-38 |
| Zone 3 | Mid-South, Desert Southwest | R-30 to R-38 |
| Zone 4 | Mid-Atlantic, Pacific Northwest | R-38 to R-49 |
| Zone 5 | Northern Midwest, Mountain West | R-38 to R-49 |
| Zone 6 | Northern New England, Northern Midwest | R-49 to R-60 |
| Zone 7-8 | Alaska, Northern Canada | R-49 to R-60 |
Insulation Types
Fiberglass batts are pre-cut blankets installed between joists. They are the most common and least expensive option. Standard batts provide R-3.2 to R-3.8 per inch. They are easy for DIY installation but must be cut precisely to fit -- gaps and compression drastically reduce effectiveness.
Blown-in cellulose is made from recycled paper treated with fire retardant. It fills irregular spaces and gaps better than batts, providing R-3.2 to R-3.7 per inch. Professional installation is recommended as it requires a blowing machine. Cellulose settles over time and may need topping off after several years.
Blown-in fiberglass provides R-2.2 to R-2.7 per inch and does not settle as much as cellulose. It is moisture-resistant and does not support mold growth.
Spray foam insulation comes in open-cell (R-3.5 to R-3.6 per inch) and closed-cell (R-6.0 to R-7.0 per inch) varieties. Closed-cell spray foam is the most effective insulation per inch and acts as both an air barrier and vapor barrier. It is also the most expensive and must be professionally installed. Spray foam applied directly to the underside of the roof deck creates an unvented (conditioned) attic -- a different approach that eliminates the need for traditional attic ventilation but has its own requirements.
Insulation and Ventilation Working Together

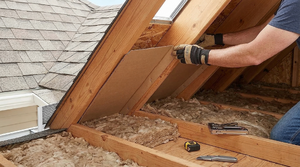

Keep insulation away from soffit vents. Install ventilation baffles (rigid foam or cardboard channels) between every rafter at the eave to maintain at least a 1-inch airflow channel from the soffit vent into the attic. Without baffles, insulation will block airflow and defeat the ventilation system.
Vapor barriers: In cold climates (zones 5-8), a vapor barrier (typically 6-mil polyethylene sheeting) should be installed on the warm side (bottom) of the attic insulation to prevent moisture from migrating into the attic. In mixed and hot climates, vapor barrier placement is more nuanced -- improper placement can trap moisture. Consult local building codes.
Air sealing before insulating: Before adding insulation, seal all air leaks between the living space and attic -- around light fixtures, plumbing stacks, electrical boxes, attic hatches, and ductwork. Air sealing is the single most cost-effective improvement for energy efficiency and moisture control.
Signs of Ventilation and Insulation Problems
- Ice dams forming at eaves in winter -- see How to Prevent and Remove Ice Dams
- Condensation or frost on the underside of roof sheathing (visible from inside the attic)
- Mold or mildew on attic framing or sheathing
- Excessive heat in upper floors during summer
- High energy bills despite adequate HVAC equipment
- Peeling exterior paint on soffits or walls below the roofline (moisture escaping from the attic)
- Premature shingle deterioration -- curling, buckling, or granule loss on a relatively new roof
- Rusty nails protruding through the underside of roof sheathing (condensation on cold metal)
If you observe any of these signs, evaluate your ventilation and insulation before assuming a roofing material problem. Addressing ventilation issues is far less expensive than premature roof replacement and is essential for maintaining your roof warranty.
