How to Apply Roof Coating to a Flat Roof
How to Apply Roof Coating to a Flat Roof
Roof coatings are liquid-applied membranes that add a seamless, waterproof, and reflective layer over an existing flat roof. Coating is one of the fastest-growing segments in DIY roofing because it can extend the life of an aging flat roof by 10 to 15 years at a fraction of the cost of full replacement. It also improves energy efficiency by reflecting sunlight, reducing cooling costs by 25 to 67 percent depending on the original roof color and climate.
Types of Roof Coatings
Acrylic Coatings
- Water-based -- easy cleanup, low odor, environmentally friendly
- UV reflective -- excellent for cool roof applications
- Good adhesion to most substrates
- Limitations: not suitable for ponding water (softens when submerged), should not be applied below 50 degrees Fahrenheit
- Best for: roofs with good drainage and warm-climate applications
- Cost: $0.50 to $0.75 per square foot per coat
Silicone Coatings
- Best waterproofing performance -- handles standing (ponding) water without degrading
- Outstanding UV and weathering resistance
- Maintains flexibility over a wide temperature range
- Limitations: attracts dirt (can reduce reflectivity over time), not paintable, more expensive
- Best for: roofs with ponding issues, any climate
- Cost: $0.75 to $1.50 per square foot per coat
Elastomeric Coatings
- Stretches with thermal movement -- bridges hairline cracks as they expand and contract
- Good reflectivity and waterproofing
- Available in multiple chemistries (acrylic-based, urethane-based)
- Best for: roofs with minor cracking, roofs that experience significant temperature swings
- Cost: $0.60 to $1.00 per square foot per coat
Aluminum Coatings
- Highly reflective -- contains suspended aluminum flakes that block UV radiation
- Traditional product with decades of track record
- Asphalt-based carrier provides waterproofing
- Limitations: strong odor during application, not as flexible as modern alternatives
- Best for: built-up roofs (BUR) and modified bitumen surfaces
- Cost: $0.40 to $0.70 per square foot per coat
When to Coat a Flat Roof
Roof coating is appropriate when:
- The existing membrane is structurally sound but showing age -- minor cracking, fading, or granule loss
- You want to extend roof life by 10 to 15 years without full replacement
- You want to improve energy efficiency by converting a dark roof to a reflective cool roof
- There are minor porosity issues -- the membrane is slightly porous but not torn or punctured
- You are preparing for solar panel installation and want maximum reflectivity and a fresh, sealed surface
Coating is not appropriate when:
- The membrane has large tears, punctures, or blisters that cannot be patched
- The roof structure is sagging or the Roof Deck is deteriorated
- Insulation below the membrane is waterlogged (this must be replaced first -- see Roof Insulation)
- The existing roof has more than two previous coating layers (adhesion diminishes)
For roofs that are beyond coating, see Roof Repair vs Replacement and Signs You Need a New Roof.
Surface Preparation
Surface prep is the most critical step in the entire process. A coating applied over a dirty, damp, or damaged surface will fail regardless of product quality. Plan to spend at least as much time on preparation as on coating application.
Step 1: Clear the Roof
Remove all debris, equipment, satellite dishes, and anything that will interfere with coating. Sweep the surface clean.
Step 2: Wash Thoroughly
Pressure wash the entire roof surface using a fan tip at moderate pressure (1,500 to 2,500 PSI). For heavy dirt, grease, or biological growth, add trisodium phosphate (TSP) or a manufacturer-recommended roof cleaner to the wash water. Pay extra attention to areas with moss or algae growth.
Step 3: Repair All Damage
Before coating, every crack, blister, split seam, and puncture must be repaired:
- Cracks and splits: fill with a compatible sealant (see Roofing Sealants and Adhesives Guide)
- Blisters: cut open, dry the interior, apply sealant, and press flat. For large blisters, apply a fabric reinforcement patch.
- Open seams: clean, prime if needed, apply seam tape or sealant
- Ponding areas: if water stands for more than 48 hours after rain, address drainage (see Roof Drainage) or use silicone coating which tolerates ponding
For EPDM Roofing membranes, use EPDM-compatible primers and sealants. For TPO Roofing, use TPO-compatible products. Cross-compatibility failures are a common cause of coating failure.
Step 4: Let the Roof Dry Completely
The surface must be bone dry before priming or coating. Allow 24 to 48 hours of dry weather after washing. Moisture trapped under the coating causes blistering and adhesion failure. Check the weather forecast and plan your project for a dry stretch of at least 3 to 4 days.
Step 5: Apply Primer (if Required)
Many coating systems require a primer coat for proper adhesion, especially on:
- Bare metal surfaces
- Previously coated surfaces with a different coating type
- Porous surfaces like concrete or built-up roofing
Follow the coating manufacturer's primer recommendations exactly. Do not skip this step if it is specified.
Application Process
Equipment

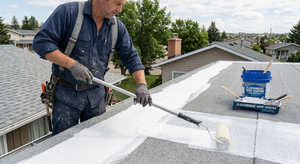

- Roller: 3/4-inch nap roller on an extension pole -- works well for most homeowners and provides good coating thickness control
- Sprayer: airless sprayer (for larger roofs) -- faster but requires experience to achieve uniform thickness
- Brush: for detail work around penetrations, edges, and seams
- Mixing paddle and drill for stirring coating material
- Fabric reinforcement mesh for seams and transition areas
See Roofing Tools Every Homeowner Should Have for general tool recommendations.
Step 6: Apply First Coat
Stir the coating thoroughly before and during application. Apply the first coat in even, parallel passes using a roller or sprayer.
- Coverage rate: typically 1 to 1.5 gallons per 100 square feet per coat (check your product's data sheet)
- Work in sections to maintain a wet edge
- Apply in one direction -- for example, east to west

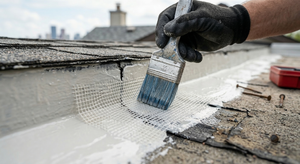

- Embed reinforcement fabric at all seams, edges, penetration flashings, and any repaired areas during the first coat. Lay the fabric into the wet coating and roll over it to fully saturate.
Step 7: Allow First Coat to Cure
Let the first coat dry and cure for the time specified by the manufacturer -- typically 4 to 24 hours depending on product, temperature, and humidity. The coating should be dry to the touch and no longer tacky before applying the second coat. Do not rush this step.
Step 8: Apply Second Coat
Apply the second coat perpendicular to the first -- if the first coat went east-west, apply the second north-south. This cross-hatching pattern ensures complete, uniform coverage with no thin spots or holidays (missed areas).
Use the same coverage rate as the first coat. The total dry film thickness for most products should be 20 to 30 mils (roughly the thickness of a credit card) across both coats.
Step 9: Detail Work
After the second coat, apply additional coating around all penetrations, at parapet walls, around drains, and at any other transition points. These areas see the most stress and benefit from extra material.
Step 10: Allow Full Cure
Most coatings reach full cure in 24 to 72 hours. Do not walk on the surface or place equipment on it until fully cured. Post warning signs or barrier tape at roof access points if needed.
Time Estimate
For a typical residential flat roof (1,000 to 1,500 square feet):
- Surface preparation and washing: 4 to 8 hours
- Drying time: 24 to 48 hours
- Repairs and priming: 2 to 4 hours
- First coat application: 3 to 5 hours
- Cure time between coats: 4 to 24 hours
- Second coat application: 3 to 5 hours
- Total project time: 1 to 2 days of active work spread over 3 to 4 calendar days
Cost Comparison
- DIY coating: $0.50 to $1.50 per square foot (materials only)
- Professional coating: $3 to $5 per square foot (materials and labor)
- Full flat roof replacement: $5 to $12 per square foot
For a 1,000 square foot flat roof, DIY coating costs $500 to $1,500 versus $5,000 to $12,000 for replacement. See Roof Repair Costs for more detailed cost data.
Maintenance After Coating
A coated flat roof requires periodic inspection and maintenance:
- Inspect twice yearly -- spring and fall (Spring Roof Inspection Checklist, Fall Roof Winterization Guide)
- Clear debris that can trap moisture or puncture the coating
- Recoat every 10 to 15 years or when reflectivity noticeably decreases
- Touch up any areas that show wear, cracking, or exposed substrate
