Solar Panels and Your Roof
Solar Panels and Your Roof
Rooftop solar panel installations have grown dramatically, and homeowners considering solar energy need to understand how panels interact with their roofing system. The relationship between solar panels and your roof affects installation methods, roof warranty, maintenance access, and long-term cost planning. Getting the roof right before solar goes on top is one of the most important and most overlooked steps in the process.
Can Your Roof Support Solar Panels?
The short answer for most homes is yes. Solar panels and their mounting hardware typically add only 3 to 4 pounds per square foot to the roof load. For context, a single layer of Asphalt Shingles weighs 2 to 4 lbs per square foot, and most roofs are engineered to handle significantly more than their current load.
However, several factors determine whether your specific roof is a good candidate.
Structural Capacity
Most homes built to modern building codes can handle the additional weight of solar panels without structural reinforcement. Older homes -- particularly those built before the 1970s -- may have lighter framing that warrants verification. See Roof Structure for information on roof framing and load capacity.
Signs that a structural assessment is advisable before installing solar:
- Home was built before 1970 or to older building codes
- Roof has visible sagging or deflection
- Roof supports heavy materials like Slate Roofing or Tile Roofing (combined weight with solar may approach limits)
- Home is in a heavy snow load region where winter snow adds significant seasonal weight
- Multiple roofing layers are present (each layer adds 2 to 4 lbs per square foot)
A structural engineer can assess capacity for $300 to $700 and provide documentation that may be required by your building department or solar installer.
Roof Age Assessment
This is the single most important roofing consideration for solar. If your roof will need replacement within the next 5 to 10 years, replace it before installing solar panels.
The reason is simple economics. Removing solar panels, storing them, replacing the roof, and reinstalling the panels costs $2,000 to $5,000 or more depending on system size and roof complexity. By contrast, if you replace the roof first, the new roof and the solar panels begin their service lives together, and you avoid the expense and risk of removing and reinstalling panels mid-life.
How to assess roof age:
- Check your records for the last roofing date
- Asphalt Shingles typically last 20 to 30 years; if yours are 15+ years old, replace before solar
- Metal Roofing lasts 40 to 70 years; most metal roofs can accept solar without age concerns
- Have a professional inspection if you are unsure of your roof's remaining life. See How to Inspect Your Roof and Signs You Need a New Roof.
Best Roof Types for Solar
Standing Seam Metal Roofing
Ideal for solar. Standing seam metal panels have raised seams that accept clamp-on mounting brackets without any roof penetrations. No holes, no sealant, no risk to the roof membrane. The clamps grip the seam and the panel rails attach to the clamps. This is the cleanest, most roof-friendly installation method available.
Additional advantages of metal roofs for solar: long lifespan (often matching or exceeding the solar panel lifespan), excellent durability, and high reflectivity around the panels. See Metal Roofing for more on metal roof types.
Composite and Asphalt Shingles

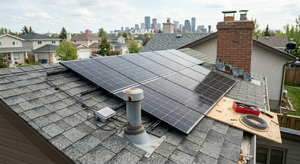

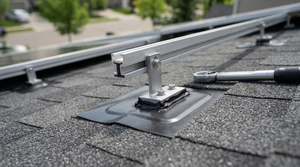

Most common installation surface. The majority of residential solar installations are on asphalt shingle roofs. Panels mount on rails attached to the roof with lag bolts that penetrate through the shingles and into the rafters or trusses. Each penetration is sealed with flashing and sealant.
This method works well when:
- The roof is in good condition with significant remaining life (10+ years)
- Penetrations are properly flashed and sealed (see How to Seal Roof Penetrations)
- The installer uses proper mounting hardware with built-in flashing
See Asphalt Shingles for shingle type information and lifespan expectations.
Concrete and Clay Tile
Viable with specialized hardware. Tile roofs require tile hooks or tile replacement mounts -- brackets designed to work with the tile profile. Installation typically involves removing tiles at mount points, attaching brackets to the deck, and replacing or trimming tiles to fit around the hardware.
This requires an installer experienced with tile roofs. Improper installation cracks tiles and creates leak points. See Tile Roofing for more on tile roof characteristics.
Flat Roofs
Good candidates for solar, with some considerations. Panels on Flat Roofs use ballasted racking systems (weighted frames that sit on the membrane without penetrations) or mechanically attached systems that bolt through the membrane. Ballasted systems are preferred because they avoid roof penetrations entirely, preserving the membrane warranty.
Flat roof solar installations must account for:
- Proper tilt angle for the latitude (panels are angled on frames to catch sunlight)
- Wind uplift (ballasted systems need enough weight to resist wind)
- Drainage paths around the panel arrays
- Membrane compatibility with mounting materials
Roof Types to Avoid or Approach with Caution
Wood Shake
Wood shake roofs present fire code concerns for solar installation. Many jurisdictions restrict or prohibit solar panels on combustible roofing materials. The combination of electrical equipment and a combustible roof surface increases fire risk. If you have a wood shake roof and want solar, replacing the roof with a non-combustible material first is strongly recommended.
Slate
Slate Roofing is fragile under foot traffic and drilling. Individual slates crack easily when walked on or when mounting hardware is installed. Specialized slate hooks exist but require experienced installers. The high cost of slate replacement (individual slates can cost $10 to $30 each, plus labor) means that any installation damage is expensive to repair.
Impact on Roof Warranty
Solar panel installation can affect your roof warranty, and understanding the implications before installation is critical. See Roof Warranties Explained for general warranty information.
Manufacturer Warranty
Most shingle manufacturers warrant against material defects. Penetrating the roof surface with mounting bolts may void the warranty in the area of the penetrations if the manufacturer determines the penetrations contributed to a failure. Review your warranty terms or contact the manufacturer before installation.
Workmanship Warranty
If a roofing contractor provided a workmanship warranty on your roof installation, adding penetrations through a different contractor may void that warranty. Contact your original roofer before scheduling solar installation.
Minimizing Warranty Risk
- Use flashed mounting systems -- mounts with integrated flashing (rather than sealant-only sealing) provide code-compliant weatherproofing that most manufacturers accept
- Document the installation -- photograph every mount point, flashing detail, and sealant application. This documentation protects you if a warranty claim arises later. See How to Document Roof Damage for Insurance for documentation best practices.
- Consider non-penetrating systems where possible -- clamp mounts on standing seam metal and ballasted systems on flat roofs avoid warranty concerns entirely

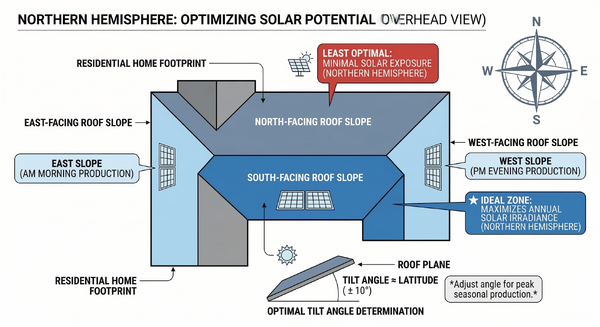

Roof Orientation and Solar Output
The direction your roof faces significantly affects solar energy production:
- South-facing (in North America): ideal. Maximum sun exposure throughout the day and across all seasons.
- Southwest and southeast-facing: very good. Produces approximately 85 to 95 percent of south-facing output.
- East or west-facing: viable. Produces approximately 80 to 90 percent of south-facing output. East-facing roofs produce more in the morning; west-facing produce more in the afternoon.
- North-facing (in North America): generally not recommended. Significantly reduced output makes the investment less economical.
Roof Pitch also affects output. The optimal tilt angle roughly equals your latitude (for example, about 40 degrees for New York City). Roofs with pitches between 3/12 and 12/12 are generally workable; very flat or very steep roofs may require specialized mounting to achieve an efficient angle.
Shading Considerations
Shade drastically reduces solar output. Even partial shading on one panel can reduce the output of an entire string of panels (though modern microinverters and power optimizers mitigate this). Before committing to solar:
- Assess shading from trees, neighboring buildings, chimneys, and dormers across all seasons
- Remember that trees grow -- a tree that does not shade your roof today may shade it in 10 years
- Consider trimming or removing trees that shade the south-facing roof area
- A professional solar site assessment includes a shading analysis using specialized tools
Maintenance Considerations
Solar panels on a roof affect ongoing maintenance:
- Roof inspections become harder -- panels cover the roof surface, making visual inspection of the shingles beneath difficult. Schedule periodic inspections with the solar installer or a roofer experienced with panel systems. See Roof Inspection and Maintenance.
- Gutter cleaning access may be restricted -- panels near the eaves can make gutter access awkward. See How to Clean Gutters Safely.
- Leak detection is complicated -- if a leak develops under or near a panel, tracing it requires working around the array. See How to Find and Fix Roof Leaks.
- Snow removal changes -- in snow climates, panels may prevent natural snow sliding, or snow may slide off panels in unpredictable sheets. See How to Use a Roof Rake for Snow Removal and How to Prevent and Remove Ice Dams.
- Panel cleaning -- panels accumulate dirt, pollen, and bird droppings that reduce efficiency. Most panels self-clean adequately with rain, but periodic cleaning may be needed in dry climates.
Cost Planning
When budgeting for rooftop solar, include these roof-related costs in your calculations:
- Roof replacement before solar (if needed): $8,000 to $15,000+ depending on roof size and material
- Structural assessment (if needed): $300 to $700
- Panel removal and reinstallation for future roof work: $2,000 to $5,000+
- Additional roof inspections: $150 to $400 per inspection
Factoring these costs into your solar return-on-investment calculation gives a more accurate picture of the true project economics.
