How to Measure Roof Pitch
Roof pitch is the angle or steepness of your roof, expressed as a ratio of vertical rise to horizontal run. It is one of the most fundamental measurements in roofing because it determines which materials you can use, how safe the roof is to walk on, how it sheds water, and how much material a job requires. Whether you are planning a repair, estimating materials for a project, or simply describing your roof to a contractor, knowing your pitch is essential.
Estimated time: 10-20 minutes
Estimated cost: Free (using tools most homeowners already own)
What Is Roof Pitch?

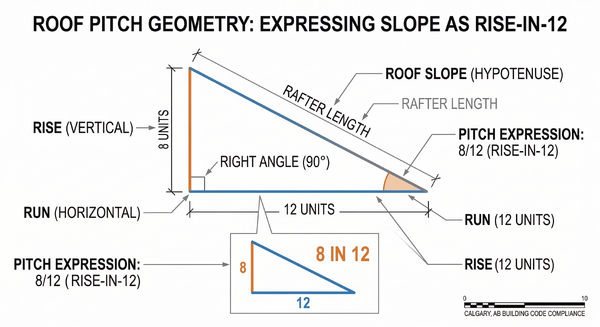

Pitch is expressed as rise over run in a ratio format like 6:12. This means the roof rises 6 inches vertically for every 12 inches of horizontal distance. The run is always standardized at 12 inches, so only the rise number changes.
- 2:12 -- a nearly flat roof (barely noticeable slope)
- 6:12 -- a moderate slope (most common residential pitch)
- 12:12 -- a 45-degree angle (steep)
- 18:12 -- an extremely steep pitch (rare, seen on some Gothic or Victorian styles)
Understanding pitch is the foundation for calculating roofing materials, assessing safety, and choosing appropriate products. See also Roof Pitch for a broader discussion of how pitch affects roof design.
What You'll Need
For the Attic Method (Recommended)
- 12-inch carpenter's level (or any level at least 12 inches long)
- Tape measure
- Pencil and paper to record the measurement
- Flashlight or headlamp (attics are dark)
For the On-Roof Method
- 12-inch carpenter's level
- Tape measure
- Stable ladder and safety equipment (see Roof Safety Guide for Homeowners)
For the Ground-Level Method
- Smartphone with a pitch-finder app, or a visual pitch estimation chart
- Clear sightline to the gable end of the roof
Method 1: From the Attic (Safest and Most Accurate)
This is the recommended method because you never need to go on the roof, and you measure the actual rafter angle directly.
Step 1: Access the Attic
Enter your attic space and locate a rafter that is accessible and visible along its full length. Any rafter will do -- they all have the same pitch on the same roof slope. Bring your level, tape measure, and flashlight.

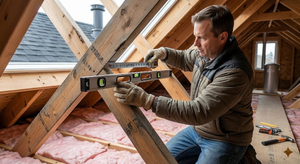

Step 2: Position the Level
Hold the 12-inch level against the underside of the rafter (the bottom edge). Position it so that one end of the level touches the rafter and the level extends horizontally toward the interior of the attic (away from the rafter). Adjust until the bubble reads perfectly level.
Step 3: Measure the Rise
With the level held horizontally, measure the vertical distance from the far end of the level (the end not touching the rafter) straight up to the underside of the rafter. This measurement is your rise.
For example, if the vertical distance is 6 inches, your roof pitch is 6:12 (6 inches of rise per 12 inches of run).
Step 4: Record the Pitch
Write down the measurement. If you measured 8 inches, your pitch is 8:12. If you measured 4.5 inches, your pitch is 4.5:12 (half-inch increments are normal and acceptable).
Tip: If your level is not exactly 12 inches, adjust accordingly. For example, with a 24-inch level, divide the measured rise by 2 to get the rise per 12 inches.
Method 2: On the Roof
Use this method only if you cannot access the attic or if the attic rafters are not exposed.
Step 1: Access the Roof Safely
Set up your ladder following the 4:1 rule and climb onto the roof near the eave. Wear rubber-soled shoes and use a harness if available. Do not attempt this on a wet, icy, or moss-covered roof.
Step 2: Position the Level on the Roof Surface
Place the 12-inch level on the roof surface with one end pointing uphill and the other downhill. Hold the downhill end of the level on the roof surface. Lift the uphill end until the bubble reads level.
Step 3: Measure the Rise
From the uphill end of the level (which is now lifted off the roof surface), measure the vertical distance straight down to the roof surface. This is your rise per 12 inches of run.
Note: This method measures the surface angle, which may differ very slightly from the true rafter angle due to shingle thickness, but the difference is negligible for practical purposes.
Method 3: From the Ground (Estimate)
This method provides an approximate pitch and is useful for quick assessments or when you cannot access the attic or roof.
Using a Smartphone App
Several free apps (search for "roof pitch finder" or "inclinometer") let you point your phone camera at the roof edge from the ground. The app uses the phone's gyroscope and camera to estimate the angle. Accuracy varies -- expect results within 1-2 pitch increments of the true value. These estimates are useful for general planning but not for precise material calculations.
Using a Visual Chart
Stand at a distance where you can see the full gable end of the roof. Compare the visible angle to a printed roof pitch chart (widely available online and in roofing handbooks). This method is the least accurate but gives a rough idea for preliminary planning.

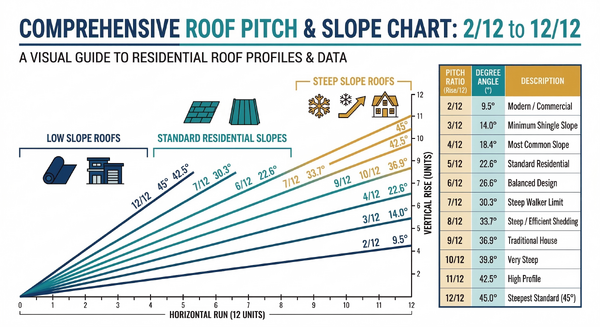

Common Roof Pitches and What They Mean
| Pitch Range | Category | Walkability | Common Materials | Notes |
|---|---|---|---|---|
| 1:12 - 2:12 | Flat/Low slope | Easy to walk | Built-up, TPO, EPDM, modified bitumen | Standard shingles cannot be used. Special low-slope materials required. See How to Apply Roof Coating to a Flat Roof. |
| 3:12 - 4:12 | Low slope | Easy to walk | Asphalt Shingles (with additional underlayment), metal panels | Many building codes require ice-and-water shield underlayment on the entire deck at this pitch. See Roofing Building Codes and Permits. |
| 5:12 - 7:12 | Standard | Comfortable to walk | Asphalt Shingles, Metal Roofing, tile, slate | Most common residential range. Most DIY work is feasible. |
| 8:12 - 9:12 | Moderate-steep | Walkable with caution | All roofing materials | Approaching the comfort limit for DIY work. Use extra safety precautions. |
| 10:12 - 12:12 | Steep | Difficult, requires staging | All materials, but installation costs increase | Professional territory. Do not attempt DIY work without specialized equipment and experience. |
| 13:12+ | Very steep | Requires scaffolding | Specialty application | Always hire a professional. |
Why Pitch Matters
Material Selection
Different roofing materials have minimum pitch requirements. Asphalt Shingles require at least a 2:12 pitch (and many manufacturers require 4:12 for standard warranty coverage). Flat roof systems are designed for pitches below 2:12. Clay tile and slate are typically installed on pitches of 4:12 and above. See Roofing Materials for a complete guide.
Safety
Pitch directly determines whether you can safely walk on your roof. Anything above 8:12 requires extreme caution and specialized equipment. Above 10:12, even professionals use scaffolding, roof jacks, and harness systems. Your pitch determines which repairs you can do yourself and which require a contractor. See Roof Safety Guide for Homeowners and When to DIY vs When to Call a Roofer.
Drainage
Steeper roofs shed water and snow faster, reducing the chance of leaks and ice dams. Lower-pitch roofs require more robust drainage systems and waterproofing. See Roof Drainage.
Cost
Steeper roofs require more material (larger surface area for the same footprint) and more labor (slower, more dangerous work). A 12:12 pitch roof has approximately 41% more surface area than a flat roof with the same footprint. Understanding this relationship is critical for material estimation and cost planning.
Insurance and Building Codes
Some insurance policies and local building codes have requirements tied to roof pitch, particularly for wind resistance in hurricane zones and snow load in northern climates.
